AC Power Source

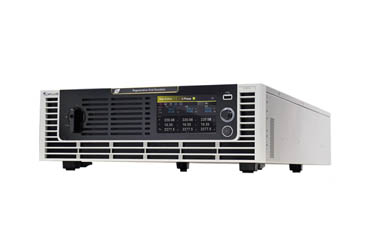

Regenerative Grid Simulator Model 61809/61812/61815

NEW Output power rating: 9kVA~15kVA
Output voltage: 0 ~ 350V
High Power Density 15kVA in 3UH
Intuitive Touch Panel Interface

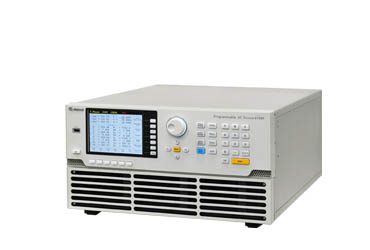

High Performance Programmable AC Power Source Model 61500 Series

Output power rating: 500VA~90kVA
Output frequency: 15Hz~2kHz (5kHz Option)
PLD simulation and harmonics, inter-harmonics waveform function
Capability of testing IEC 61000-4 series standards

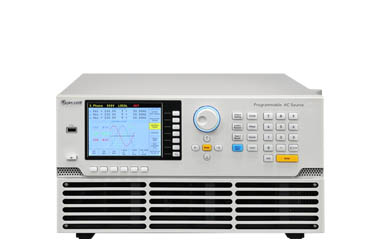

Programmable AC Power Source Model 61600 Series

Output power rating: 500VA~90kVA
Output frequency: 15Hz~2kHz
Capable of delivering high CF current
Turn on, turn off phase angle control

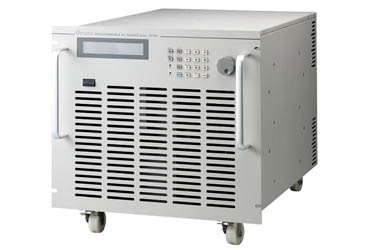

3-Phase AC Power Source Model 61700 series

Output power rating: 1.5kVA ~ 12kVA
Three phase output voltage 0 ~ 300V
Output frequency: 15Hz ~ 1.2kHz
Capable of Power Line Distortion simulation

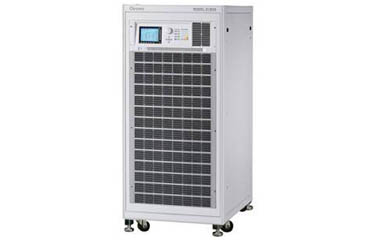

Regenerative Grid Simulator Model 61830/61845/61860/61800-100

Output power rating: 30kVA ~ 60kVA max. 300kVA (Parallel connect up to 5 units)
Three phase output voltage 0 ~ 300V/30Hz ~ 100Hz
Full 4-quadrant with regenerative capability
Capable of Power Line Distortion simulation

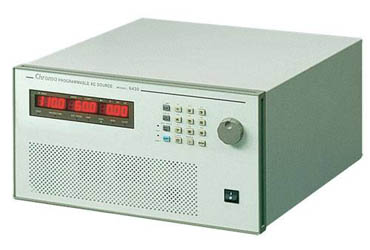

AC Power Source Model 6400 series

Output power rating: 1.5kVA ~ 9kVA
Output frequency: 45Hz ~ 1kHz
Output voltage: 0 ~ 300V
Low output distortion < 0.3%

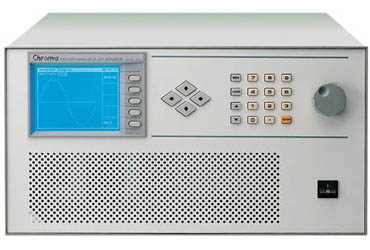

AC Power Source Model 6500 series

Output power rating: 1.2kVA ~ 9kVA
Programmable Sine/Square/Clipped Sine waveform capability
Capable of Power Line Distortion simulation
30 built-in harmonics waveform
