Battery Pack/Module Test Solution

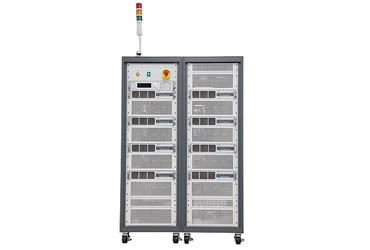

Regenerative Battery Pack Test System Model 17020

Voltage 20V/60V/100V/200V/500V for EV, storage battery pack/module test
Max 60 independant channels, parallel for high current

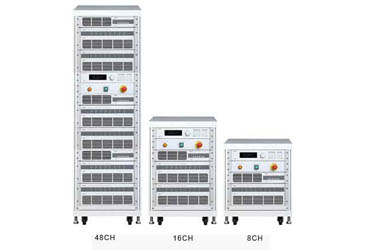

Regenerative Battery Pack Test System Model 17020E

Charge/discharge modes (CC, CV, CP)
Power: 10kW, 20kW per channel (Up to 80kW by parallel)
Voltage: 60V,100V, 200V
Current: 180A, 100A per channel (Up to 800A by parallel)

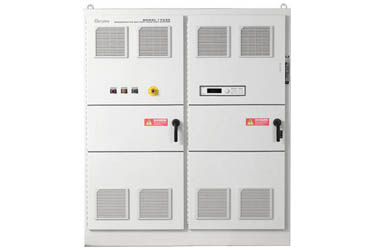

Regenerative Battery Pack Test System Model 17030

Voltage range：10~1200V
Power range：90~500kW
Dynamic charge/discharge test, driving cycle simulation

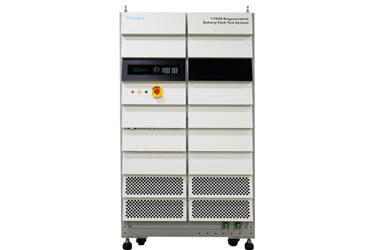

Regenerative Battery Pack Test System Model 17040

Voltage range : 60~1000V, Current range : 0~750A, Power range : 0~300kW
Accuracy current / voltage measurement (±0.05%FS / ±0.02%FS)
Multiple voltage / current ranges for auto ranging function

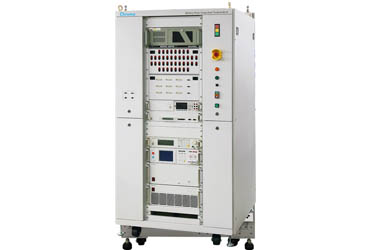

Battery Pack Integrated Testbed Model 8610

Support via ASAM XIL and ASAM XIL-MA
Extensive modular hardware
Support CAN, CAN FD, and LIN communication interfaces
Independent PLC real-time monitoring

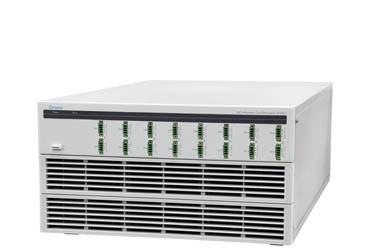

16CH Battery Cell Simulator Model 87001

Operating mode : CC/CP
Channel power: 25W, Channel voltage: 5V, Channel current: 5A (parallelable)
Bidirectional power supply design
480-cell battery pack voltage simulation ability (connected in series)
