Electric Vehicle Test Solution

Power Electronic Component Automatic Test System

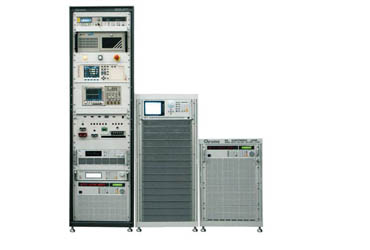

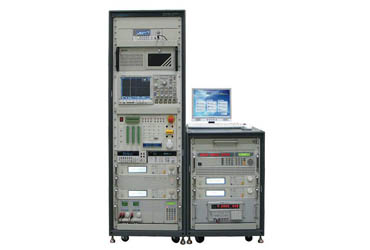

EV OBC/DC-DC Converter ATS Model 8000

  • Apply for different UUT characteristics
  • Integrated connecting panel
  • Exclusive test items

EV Wireless Power Transfer ATS Model 8000

  • Specifically designed for EV Wireless
    Power Transfer (WPT) verification
  • Comprised of Chroma 8000 ATS
    & WPT testing platform

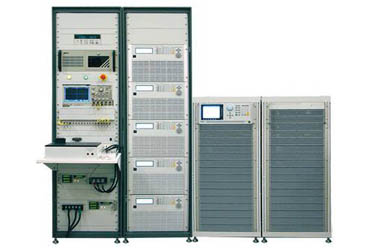

HCU/DC-DC Converter ATS Model 8000

  • Microsoft word based evaluation
    report or UUT characterization

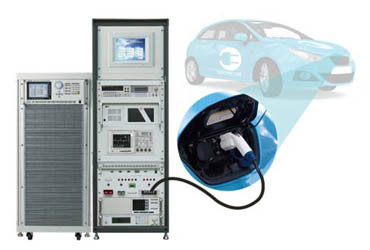

Electric Vehicle Supply Equipment ATS (EVSE ATS) Model 8000

  • Complying with SAE-J1772, CNS15511, GB/T 20234.2 test requirement
  • Power grid and EV condition simulation

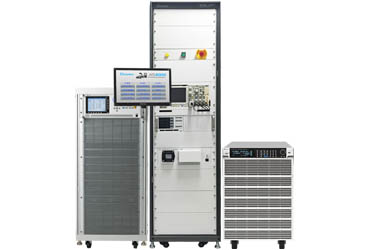

Electric Vehicle AC Charging Compatibility ATS Model 8000

  • Based on the requirements of different regulations to simulate EVSE for testing if electric vehicle can do accurate action or response appropriately
  • Testing response action of electric vehicle

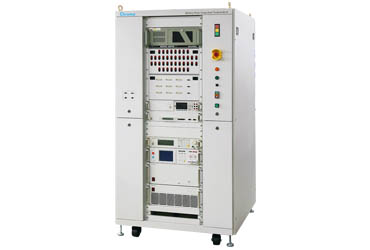

Battery Pack Integrated Testbed Model 8610

  • Support via ASAM XIL and ASAM XIL-MA
  • Extensive modular hardware
  • Support CAN, CAN FD, and LIN communication interfaces
  • Independent PLC real-time monitoring

Electric Propulsion Test System

Battery Pack Integrated Testbed Model 8610

  • Support via ASAM XIL and ASAM XIL-MA
  • Extensive modular hardware
  • Support CAN, CAN FD, and LIN communication interfaces
  • Independent PLC real-time monitoring

DC Power Supply

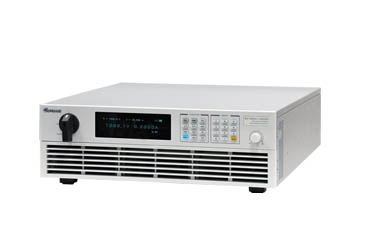

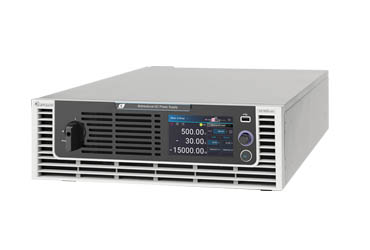

Bidirectional DC Power Supply Model 62000D Series

  • NEW Two-quadrant operation:
    source and load functions
  • Voltage rating: 0~100V, 600V, 1200V, 1800V
  • Current rating: 0~540A
  • Power rating: 6kW, 12kW, 18kW

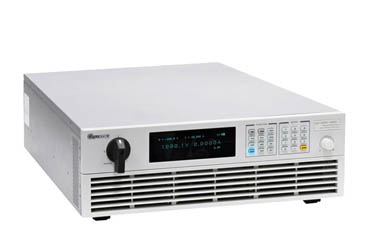

DC Power Supply Model 62000H Series


Solar Array Simulator Model 62000H-S series

  • NEW High-voltage 1800V for string PV inverter test solution
  • 5kW/10kW/15kW/18kW up to 1MW
  • Fast Transient Response Solar Array Simulation
  • Build-in dynamic MPPT test profile of EN50530/Sandia/CGC-GF004/CGC/GF035/NB-T32004

Ultra-High Stability DC Power Supply Model 62075H-30N

  • 7.5kW/up to 60V
  • Current Stability:2.5mA/10ppm
  • High Resolution Current Programming & Measurement: 20 bit DAC & 24 bit ADC
  • Ethernet/LXI Interface
  • Magnet power supply application

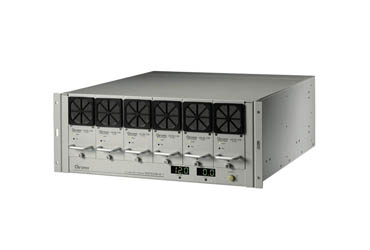

Modular DC Power Supply Model 62000B series

  • 1.5kW Per Module up to 120kW System
  • N+1 Redundancy
  • Hot Swappable
  • Burn-in and plating application

DC Power Supply Model 62000P Series

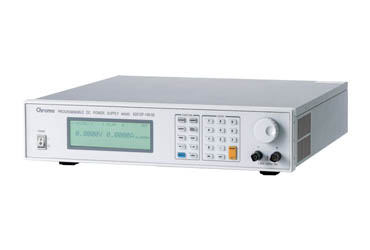

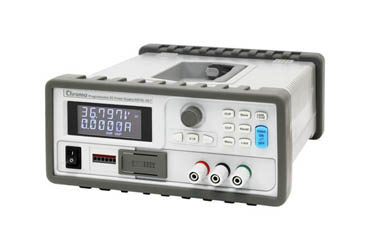

Programmable DC Power Supply Model 62000L Series

  • Power range: 108W/150W
  • Low noise: <3mVp-p
  • High transient response time: <30us
  • Steps for auto sequencing programming

Electronic Load

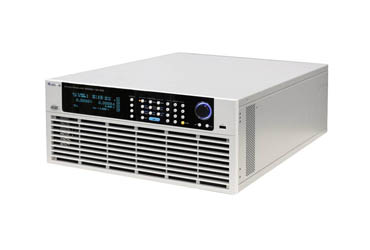

High Power DC Electronic Load Model 63200A Series

  • Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max.240kW (Parallel)
  • Voltage Range: 0-150V, 0-600V, 0-1200V
  • User Defined Waveform (UDW)
  • Sync. Dynamic Control

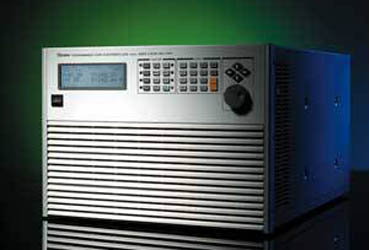

AC and DC Electronic load Model 63800 series

  • Power rating: 1800W, 3600W, 4500W
  • Parallel / 3-Phase function (AC mode only)
  • Constant & Rectified load modes for AC loading
  • CC, CR, CV, CP for DC loading

Motor Test Solution Safety Test

Wound Component EST Analyzer Model 19036

  • Rated power: 2kW, 3kW, 4kW, 5kW, 6kW, 12kW, 18kW, 24kW, Max.240kW (Parallel)
  • Voltage Range: 0-150V, 0-600V, 0-1200V
  • User Defined Waveform (UDW)
  • Sync. Dynamic Control

Hipot Analyzer Model 19055/19055-C

  • Hipot test
    ACW 5kV/100mA
    DCW 6kV/25mA
  • Insulation Resistance test
    5kVmax
    1MΩ~50GΩ
  • 500VA output

Automatic Transformer Test System / Automatic Component Analyzer

Transformer Test System / Component Analyzer Model 3250/3252/3302

  • Test frequency: 20Hz~200kHz (3250/3252) / 20Hz~1MHz (3302)
  • Basic accuracy: 0.1%
  • Optional 20ch scan box
